INEOS Grenadier: DTP-06-2S to IP65 Waterproof Splitter

SKU I-PWR-2WP
$24.00
From $2.00 /mo with Shop Pay (est.)

INEOS Grenadier: DTP-06-2S to IP65 Waterproof Splitter

Rooftop Power Expansion · 1-in, 2-out · 16 AWG · IP65 Outputs

Run two rooftop accessories from a single DTP source without cutting factory wiring. Expands one INEOS Grenadier rooftop DTP power output to feed two accessories through IP65 waterproof connectors. Useful when combining camp/scene lighting with communications or low-current rooftop devices.

Key Features & Specifications

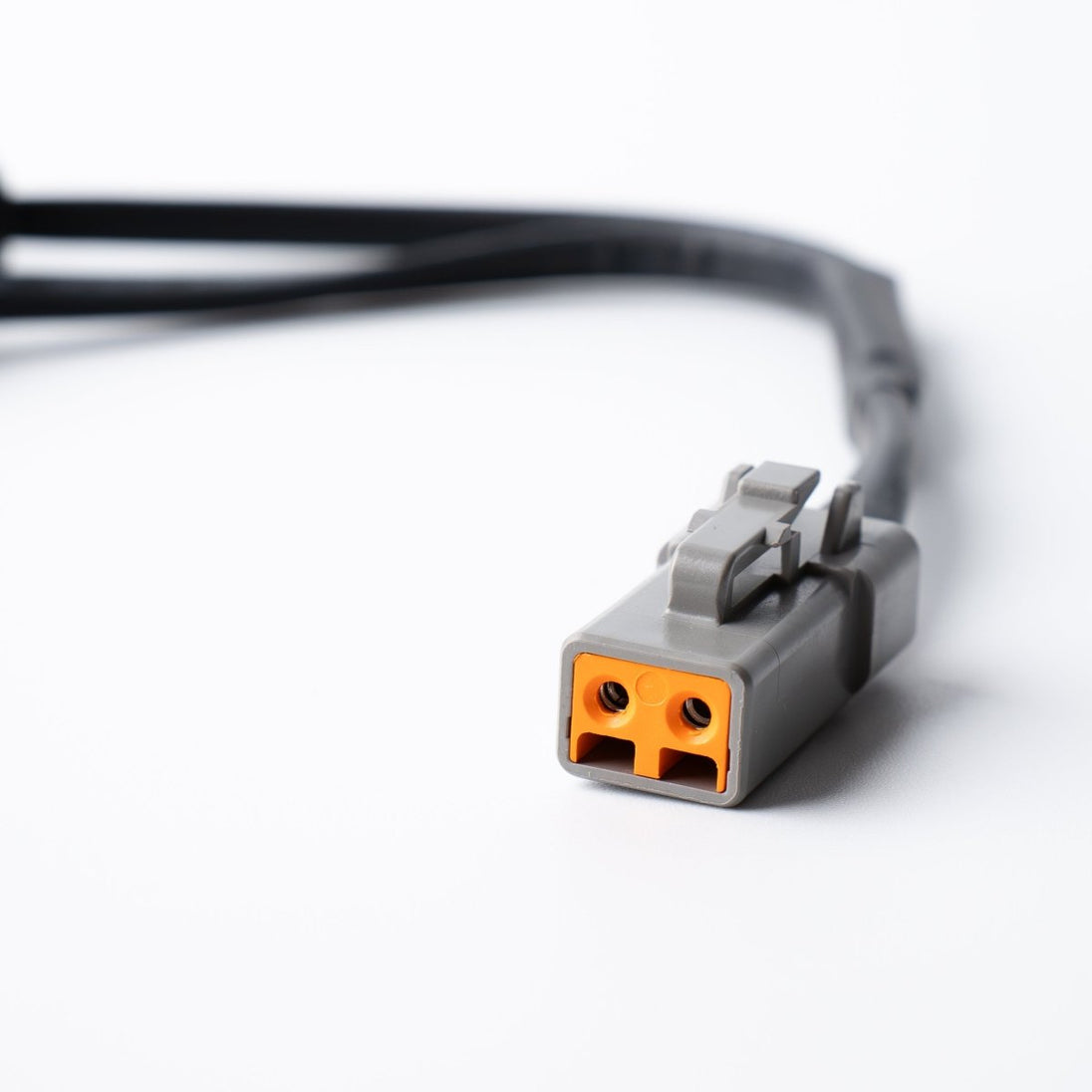

  • Input: DTP-06-2S male

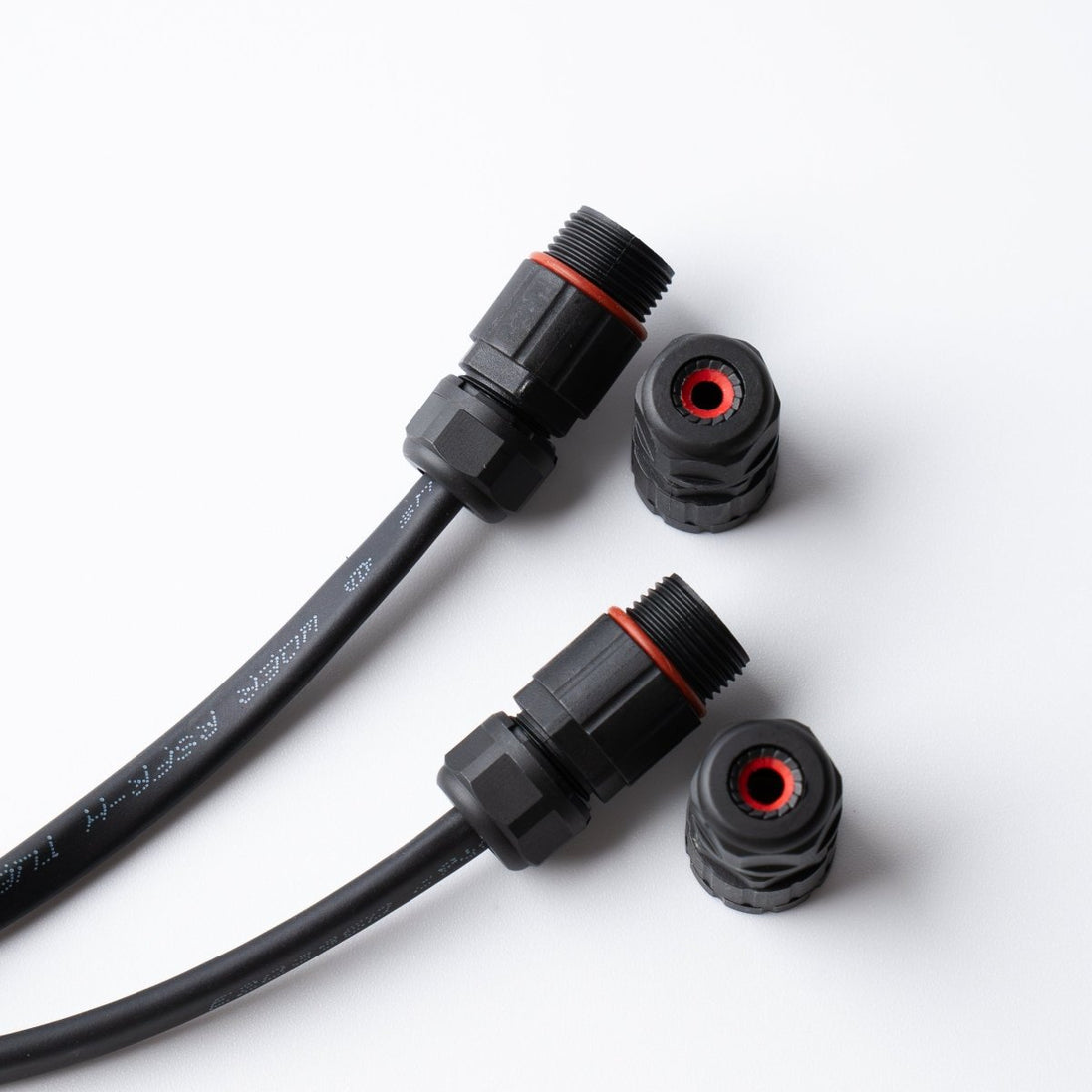

  • Outputs: Dual IP65 waterproof connectors
  • Wire gauge: 16 AWG (supports smaller accessory leads via IP65 side)
  • Ingress protection: IP65 at output connectors when properly mated
  • Current ceiling: Verify based on source fuse and total connected load

Fitment & Compatibility

For INEOS Grenadier rooftop DTP power output expansion where one source needs to feed two accessories through IP65 connectors. Exclusions: not for high-current loads beyond circuit limits, and not a voltage converter. Verify accessory current draw and connector mating type before order.

Installation & Prerequisites

  1. Confirm total accessory draw is within source circuit limits.
  2. Connect DTP input to rooftop source and lock tab.
  3. Mate each accessory to IP65 output and seal couplings fully.
  4. Secure harness against abrasion at roof rack transitions.

What's Included

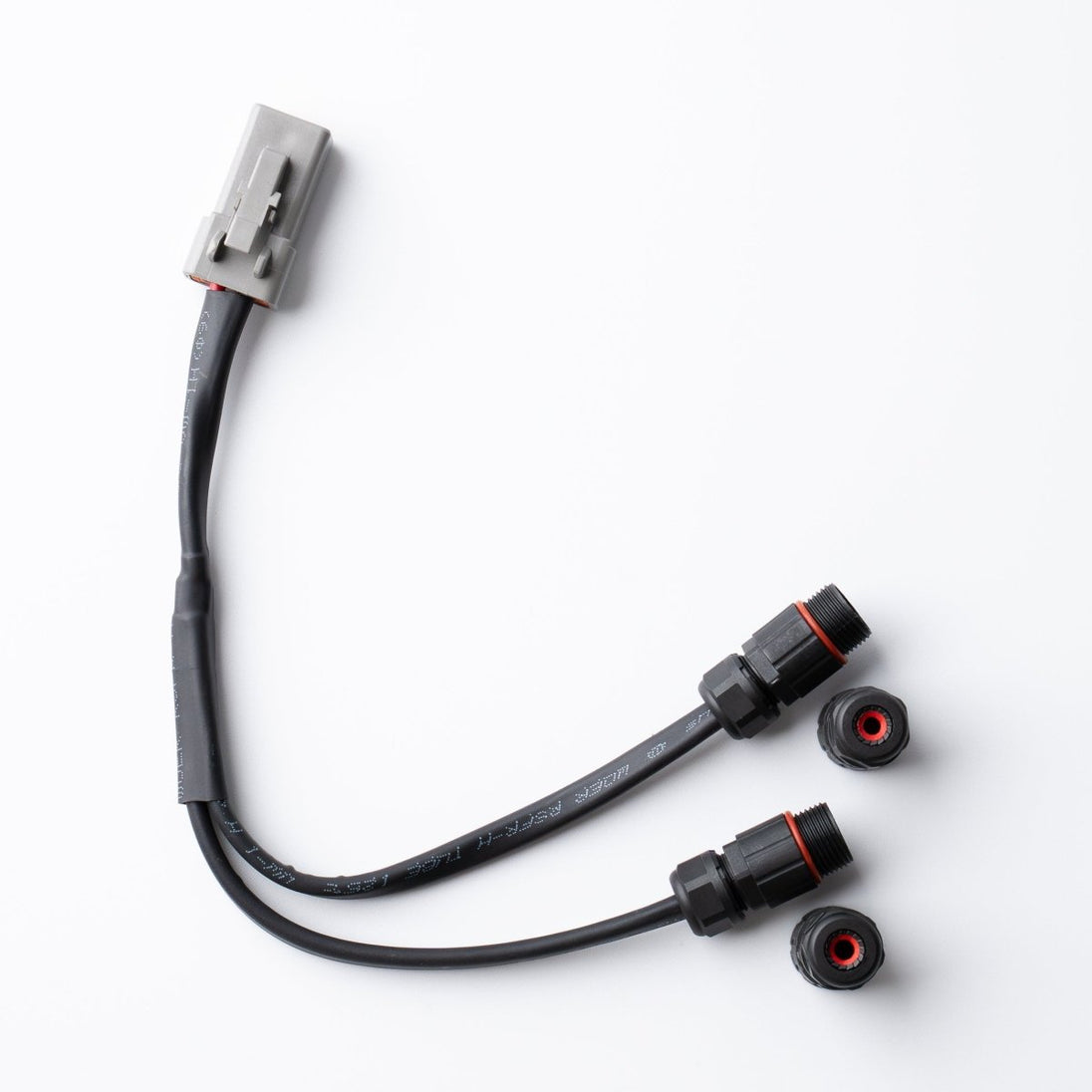

  • 1× DTP-06-2S to dual IP65 splitter cable

Not Included

  • Accessory lights/devices
  • Fuse upgrades
  • Switch controllers

Frequently Asked Questions

Can both outputs run at full load simultaneously?
Only within the source circuit and fuse limits. Sum the current of both accessories first.
Does this cable include an inline fuse?
No, use upstream protection appropriate to your wiring plan.
Can I power sensitive electronics?
Yes if voltage is appropriate and polarity is verified before connection.
Is it okay to leave installed year-round?
Yes, with proper strain relief and periodic seal inspection.
